제품소개

형강

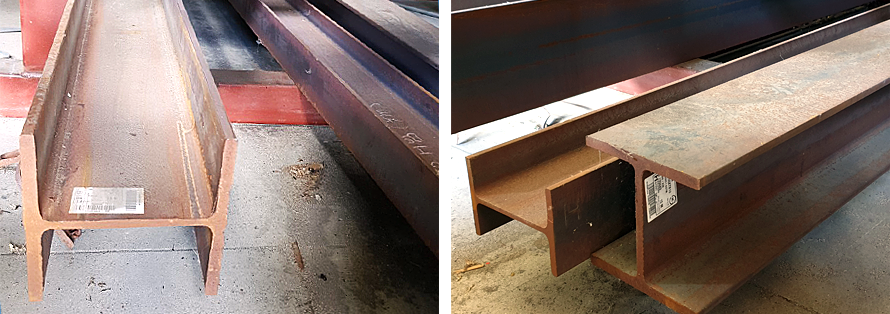

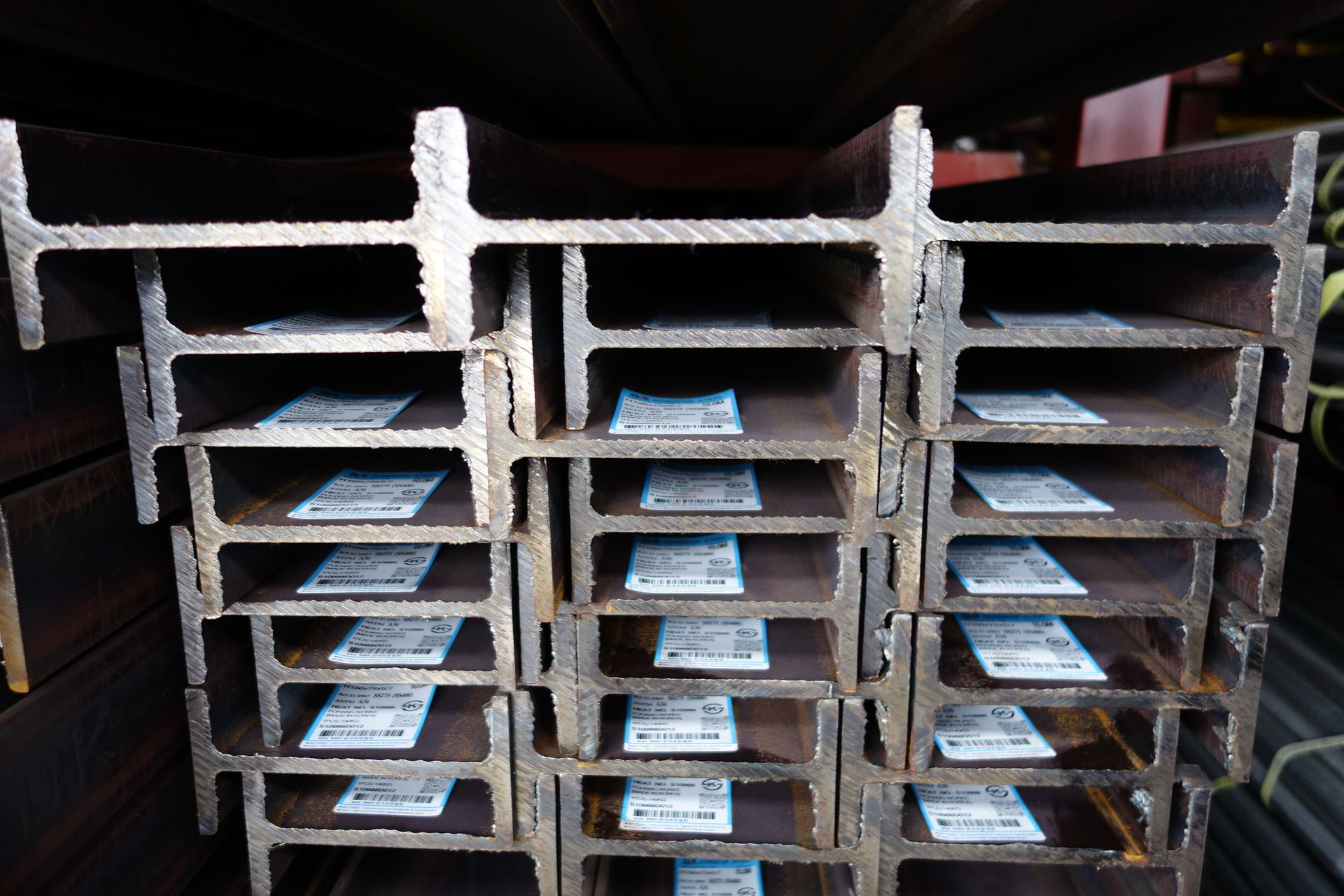

 H빔

  H빔 제원표

공칭치수
Nominal Size
(mm)
표준단면치수
Standard Sectional Dimension
(mm)
단위중량
Unit Weight
(kg/m)
단면적
Sectional Area
(㎠)
단면계수
Modulus of Section
(㎤)
H X B
t1
t2
r
W
A
Zx
Zy
100X100
100X100
6
8
10
17.2
21.90
76.5
26.7
125X125
125X125
6.5
9
10
23.8
30.31
136
47.0
150X75
150X75
5
7
8
14.0
17.85
88.8
13.2
150X100
148X100
6
9
11
21.1
26.84
138
30.1
150X150
150X150
7
10
11
31.5
40.14
219
75.1
200X100
198X99
4.5
7
11
18.2
23.18
160
23.0
200X100
5.5
8
11
21.3
27.16
184
26.8
200X150
194X150
6
9
13
30.6
39.01
277
67.6
200X200
200X200
8
12
13
49.9
63.53
472
160
200X204
12
12
13
56.2
71.53
498
167
208X202
10
16
13
65.7
83.69
628
218
250X125
248X124
5
8
12
25.7
32.68
285
41.1
250X125
6
9
12
29.6
37.66
324
47.0
250X175
244X175
7
11
16
44.1
56.24
502
113
250X250
244X252
11
11
16
64.4
82.06
720
233
248X249
8
13
16
66.5
84.70
801
269
250X250
9
14
16
72.4
92.18
867
292
250X255
14
14
16
82.2
104.7
919
304
300X150
298X149
5.5
8
13
32.0
40.80
424
59.3
300X150
6.5
9
13
36.7
46.78
481
67.7
300X200
294X200
8
12
18
56.8
72.38
771
160
298X201
9
14
18
65.4
83.36
893
189
300X300
294X302
12
12
18
84.5
107.7
1,150
365
298X299
9
14
18
87.0
110.8
1,270
417
300X300
10
15
18
94.0
119.8
1,360
450
300X305
15
15
18
106
134.8
1,440
466
304X301
11
17
18
106
134.8
1,540
514
310X305
15
20
18
130
165.3
1,810
620
310X310
20
20
18
142
180.8
1,890
642
350X175
346X174
6
9
14
414
52.68
641
91
350X175
7
11
14
49.6
63.14
775
112
354X176
8
13
14
57.8
73.68
909
134
350X250
336X249
8
12
20
69.2
88.15
1,100
248
340X250
9
14
20
79.7
101.5
1,280
292
350X350
344X348
10
16
20
115
146.0
1,940
646
344X354
16
16
20
131
166.6
2,050
669
350X350
12
19
20
137
173.9
2,300
776
350X357
19
19
20
156
191.4
2,450
809
